Feeder
LMC series
3 in 1 LMC series Uncoiler +Straightner + Feeder
Quantity
3 in 1 LMC series Uncoiler +Straightner +Feeder for material thickness 0.3~3.2mm
Specifications:
1.High Degree of Flatness
Combining the power of tie hcavy duty HL Unit with the straighteningperformance of 11 work rolls(6 upper and 5 lower),the HL unit givesmatrrial a high degree of flatness to the materials from up to 6.0mm thick.
Combining the power of tie hcavy duty HL Unit with the straighteningperformance of 11 work rolls(6 upper and 5 lower),the HL unit givesmatrrial a high degree of flatness to the materials from up to 6.0mm thick.
2.Geared motor with inverter control
Geared Motor with Inverter control allows the feed speed to changeeasily,in addition,a direct drive mechanism without a chain and precision gear hasbeen adopted.These features create maximum smoothness of the work rollmovement producing a precise end product.
Geared Motor with Inverter control allows the feed speed to changeeasily,in addition,a direct drive mechanism without a chain and precision gear hasbeen adopted.These features create maximum smoothness of the work rollmovement producing a precise end product.

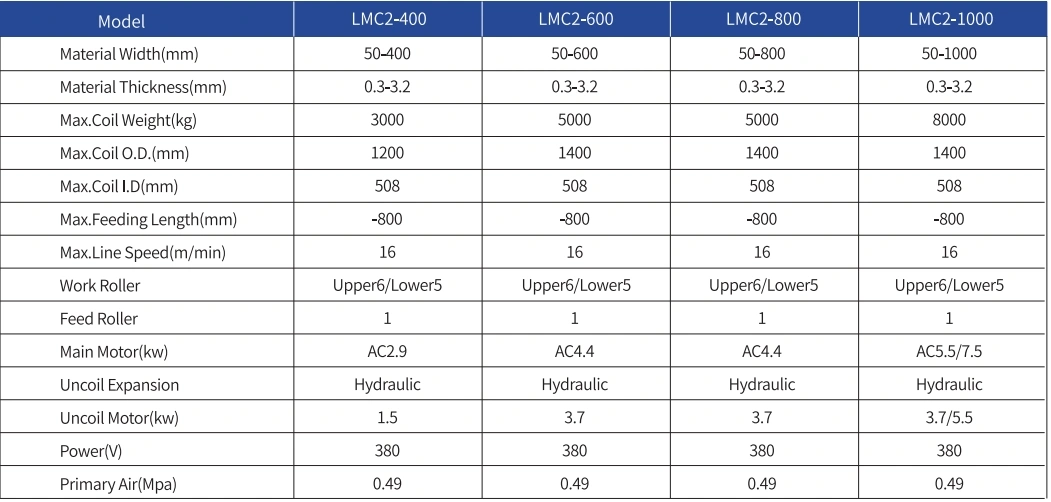

Parameters:
